| Working Area | 1300x2500x400mm |
| Table Size | 1450×2940mm |
| Table Surface | Vacuum and T-slot Combined |
| Frame | Welded structure |
| X, Y Structure | Linear Rack and Pinion |
| Z Structure | Ball Screw |
| Max. Power Consumption | 5.5kw (Without Spindle) |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 6.0KW |
| Spindle Speed | 0-24000RPM |
| Motors & Drive | AC Servo motor |
| Working Voltage | AC 440V /50/60Hz,3PH |
| Command Language | Geometric code |
| Control System controller | Siemens/ Mitsubishi/ Fanuc/ Delem/ NC Studio/ RichAuto/ Adtech.. any brand |
| Computer Interface | Enthernet Cable, CF Card |
| Processor, Software Supporting OS | intel i5 Processor, Windows 10,7 |
| Collet | ER32 |

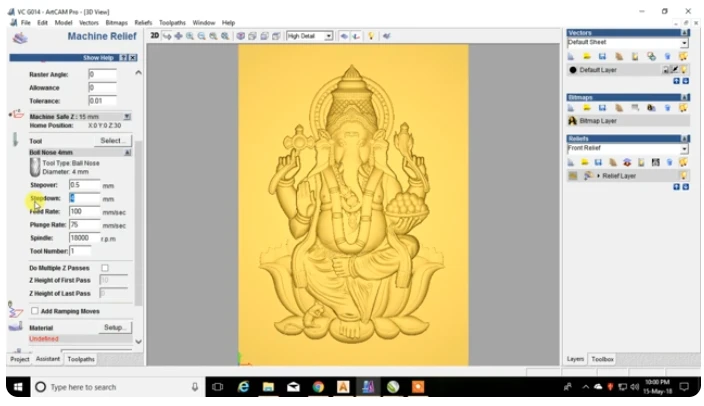

| Software Compatibility | Artcam software |
| Stabilizer type | Servo Stabilizer |
| Gross. Weight. | 2100KG |

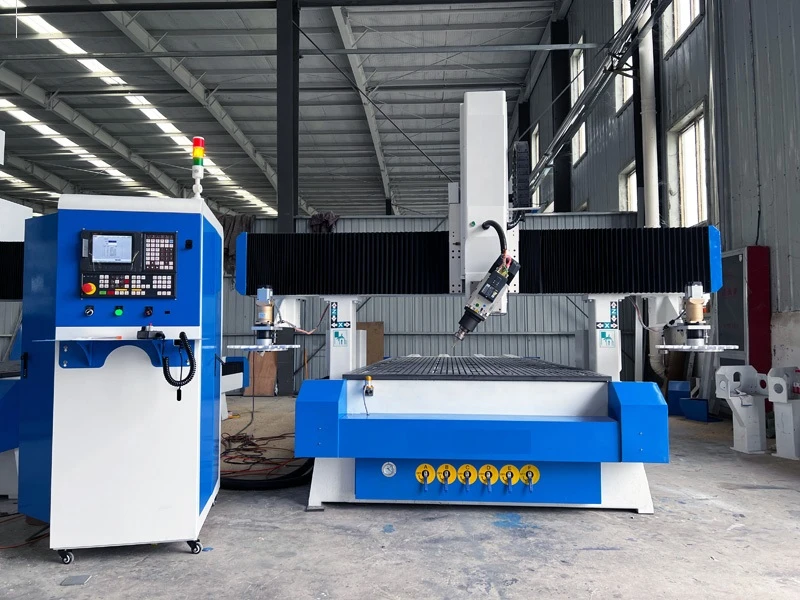

Applications of Industrial 4 Axis CNC Router
1. Mould: wood, wax, wood, gypsum, foams, wax.

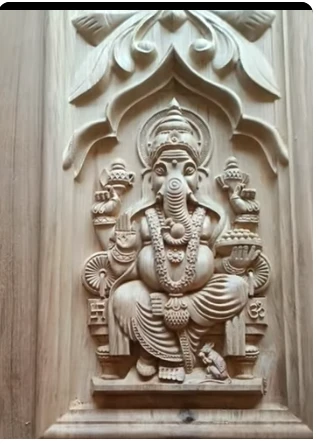

2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
